Key takeaways
- Start with the projector, not the laptop: check whether its input (or the wall plate or desk panel it is wired to) is HDMI or the older VGA, then match it to a video output on your laptop or an adapter.
- Not every USB-C port sends video: VESA says ports that do normally carry the DisplayPort (DP) logo near the connector.
- After plugging in, set the projector's source to the input you used. On Windows, press Windows key + P and choose Duplicate, or Extend to keep notes on the laptop; on a Mac, open System Settings, then Displays.
- HDMI carries sound as well as picture. VGA carries only the picture, so sound needs a separate audio cable from the laptop's headphone jack.
- If the projector says "No signal", work back from the projector: check its source, press Windows key + P and choose Duplicate, reseat the cable, then restart the laptop with the cable connected.
On this page11
What do you need to connect a laptop to a classroom projector?
You need three things that match: an input on the projector (or on the wall plate or desk panel it is wired to), a video output on your laptop, and a cable or adapter that joins the two. Once they are joined, two settings finish the job: the projector's source must be set to that input, and the laptop must be told to send its picture out.

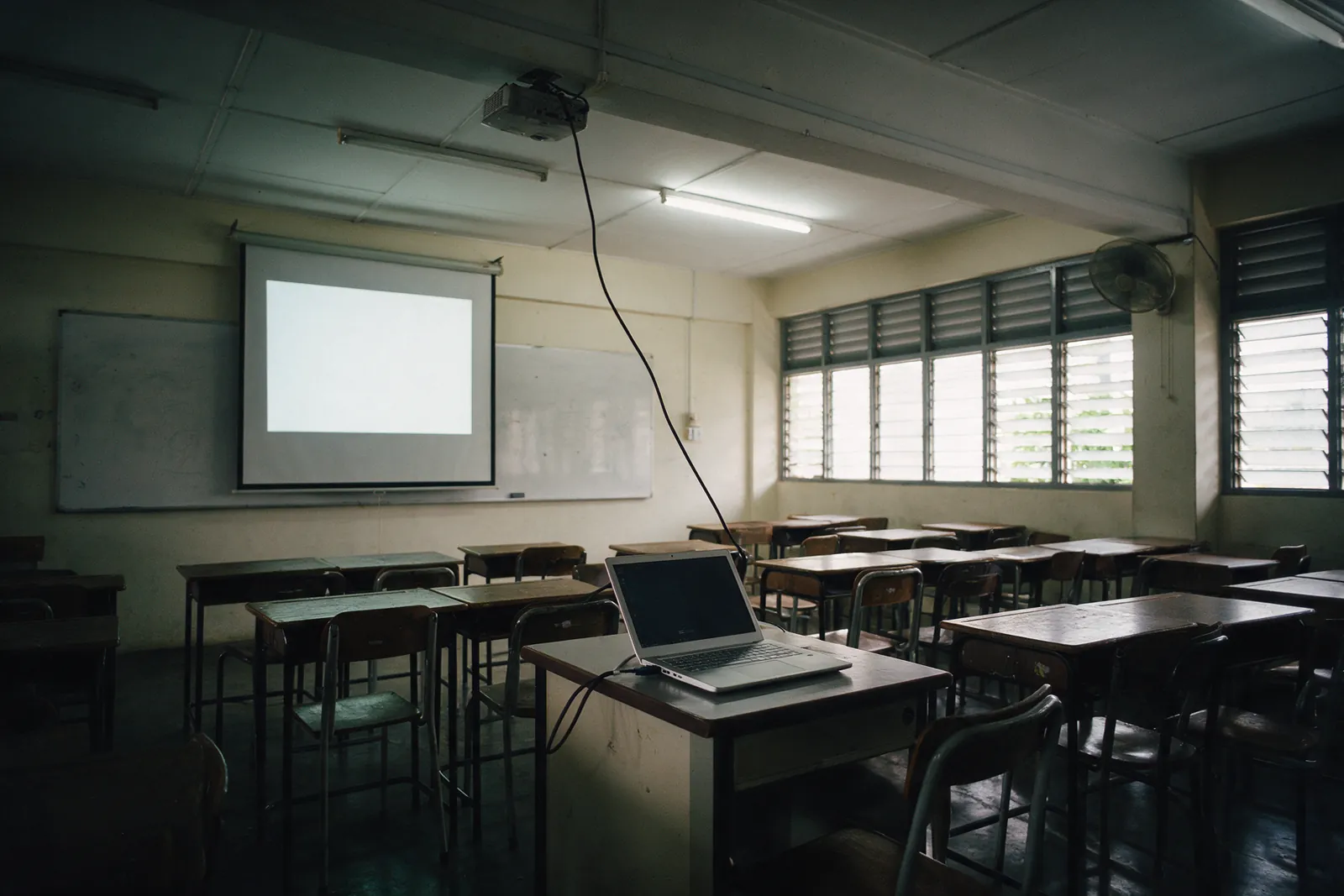

In many classrooms the projector is mounted on the ceiling, so your cable may end at a wall plate or desk panel instead. The label on that wall plate or panel tells you which input the cable feeds, and that is the input you will select later. The steps are for Windows, with a Mac section after them.
Which port should you look for: HDMI, VGA or USB-C?
Look for HDMI first. Utah State University's classroom support team calls HDMI "the preferred laptop connection", and one HDMI cable carries both picture and sound. VGA is the older connection: it carries only the picture, and Ohio State University's classroom guide notes that VGA "is being phased out in classrooms" because newer devices are no longer produced with it. USB-C can carry video too, but only from a port that supports it.
| Port | Sound | What to know |
|---|---|---|
| HDMI | Yes, same cable | A flat, wide plug with two angled corners. No HDMI port on your laptop? A USB-C to HDMI adapter needs a USB-C port that sends video (see below). |
| VGA | No | A wider, D-shaped plug with rows of pins and two thumb screws, often blue. Sound needs a separate audio cable, and newer laptops are unlikely to have this port, so expect to need an adapter. |
| USB-C | Via the adapter | A small, rounded plug that fits either way up. Video works only if the port supports DisplayPort Alternate Mode; sound then follows the HDMI or VGA row. |
| DisplayPort | Via the adapter | A plug with one angled corner, less common on classroom projectors. In an HDMI room you will usually need a DisplayPort to HDMI adapter or cable. |
| Wireless | Depends on the display | No plug: a Windows laptop casts over Wi-Fi using Miracast, a Mac using AirPlay. The room's display must support the same method. |
Does every USB-C port send video?
Not every USB-C port sends video. VESA, which publishes the DisplayPort Alt Mode for USB Type-C standard, explains that a display plugged into a USB-C port without DisplayPort support gets no video data, "so there will be no image on the screen." VESA says supporting ports "will normally include the DisplayPort (DP) logo near the connector"; with no logo, check the laptop's documentation before you buy an adapter.
VESA also notes that most video source devices that use the USB-C connector already support DisplayPort Alt Mode.
"We're working with VESA to ensure consumers can recognize when DisplayPort Alt Mode is supported on USB Type-C devices." — Jeff Ravencraft, President and COO of the USB Implementers Forum (USB-IF), in VESA's announcement of 22 September 2014
How do you connect a laptop to a classroom projector, step by step?
Switch the projector on, plug the cable (and any adapter) into the laptop, set the projector's source to the input you used, then tell the laptop to send its picture out: on Windows, press Windows key + P and choose Duplicate. Each step takes seconds, and doing them in this order makes a missed step easy to spot when the screen stays blank.
- Switch the projector on. Use its remote or the room's control panel, and let it warm up.
- Connect the cable. Plug any adapter into the laptop first, then the cable into the adapter (or straight into the laptop's port). Push each plug fully in; with VGA, tighten the two thumb screws.
- Select the input. Press Source or Input on the projector or its remote, or the input button on the room's panel, and choose the one your cable feeds. Labels vary: classroom guides from Miami University and Grand Rapids Community College both tell staff to press a button marked "Laptop", while other rooms say HDMI, VGA or Computer.
- Send the picture out. On Windows, press Windows key + P and choose Duplicate. Some Windows laptops also have a function-key shortcut; Grand Rapids Community College suggests trying Fn + F4 or Fn + F7, depending on the model. On a Mac, use the Displays settings described below.
- Check picture and sound. Open the first slide and play a few seconds of any video you plan to use, so a sound problem shows up now rather than in front of the class.
- Fine-tune. Soft or stretched text is a laptop resolution setting (see below); a blurry or wedge-shaped image needs the projector's own focus and keystone controls.
How do you connect a MacBook to a classroom projector?
Connect the MacBook to the projector's input, with an adapter if the ports differ, and set the projector's source. Then choose Apple menu, then System Settings, then Displays, click the projector's name and choose an option from the "Use as" pop-up menu. Apple says video mirroring shows "your entire desktop on each display", and that a Mac laptop must have an external display connected to see these options.
Mirroring on a Mac does the same job as Duplicate on Windows; an extended desktop matches Extend. Mac sound and wireless steps are in the sections below.
What should you prepare before the lesson?
Prepare the things you cannot fix on the spot: the right adapter, a backup copy of the lesson and a contact for the room. Run through the connection at the start of the day, or in the break before the lesson, so there is time to borrow an adapter or change plans if something does not fit.
- Bring your own adapter. Utah State University's guide states that "It is the responsibility of the laptop owner to provide an adapter." At your school, ask whoever looks after the room what is provided.
- Keep a fallback. Have the lesson files on a USB drive or in cloud storage, in case you end up on another computer.
- Know who looks after the room. Note how to reach them for a borrowed adapter or a projector fault.
Duplicate or Extend: which display mode should a teacher choose?
Choose Duplicate when the class should see exactly what you see, such as a live demonstration. Choose Extend when you want speaker notes, a mark sheet or your email on the laptop while the projector shows only the lesson. On Windows, press Windows key + P to choose between four modes: PC screen only, Duplicate, Extend and Second screen only.
Microsoft describes each mode in one line:
| Mode | Microsoft says | Use it for |
|---|---|---|
| PC screen only | "See things on one display only." | Before or after the lesson, or to hide the screen for a moment. |
| Duplicate | "See the same thing on all your displays." | Live demos, browsing, pointing at your own screen. |
| Extend | "See your desktop across multiple screens." | Slides with speaker notes; keeping private windows off the wall. |
| Second screen only | "See everything on the second display only." | When you face the class and do not need the laptop's own screen. |
Extend suits PowerPoint: Microsoft says Presenter View "shows you the current slide, the next slide, and your speaker notes", and you choose which monitor it appears on, so it can stay on the laptop. The catch is that the projector becomes a second desktop: Microsoft notes that "you can move items between the two screens", so a window that opens on the laptop stays hidden from the class until you drag it across.
Duplicate has the opposite catch: the class sees everything, including pop-up notifications. Close email and messaging apps before you start.
Why does the projected picture look stretched, blurry or cut off?
A soft or stretched picture is often a resolution mismatch between the laptop and the projector. In Windows, go to Start, then Settings, then System, then Display, select the projector's display, and choose from the Display resolution list. Microsoft advises: "It's usually best to stick with the one that's marked (Recommended)."
Microsoft also explains why a lower setting looks worse: "Monitors can support resolutions that are lower than their native resolutions, but text won't look as sharp."
Black bars at the sides, or at the top and bottom, are not a fault. They can simply mean the laptop screen and the projector have different shapes (aspect ratios), and in Duplicate mode both screens must share one picture.
How do you get sound through the projector or the room speakers?
With HDMI, sound travels on the same cable as the picture, but the laptop may keep playing it through its own speakers until you choose the HDMI device as the output. With VGA, the cable carries no sound at all: Ohio State University notes that VGA "carries only the video signal" and that an additional auxiliary cable is needed for audio, usually from the laptop's headphone jack to the room's speakers.
- On Windows: open Start, then Settings, then System, then Sound, and under Output choose the projector or HDMI device. Microsoft's audio troubleshooter says that when you connect over HDMI "you might need to set that device as the default audio device".
- On a Mac: choose Apple menu, then System Settings, then Sound. Apple's instruction is: "Click Output, then select the device you want to use in the list of sound output devices."
- The reverse problem: if the room's speakers are wired separately and the projector has none, choosing the projector as the output gives silence. Microsoft says to make sure such a display "isn't already selected as your default output device", because "if it is, you won't have any audio."
- With VGA: plug the room's audio cable into the laptop's headphone jack, then raise the volume on both the laptop and the room system.
Can you connect a laptop to a classroom projector without a cable?
A laptop can connect to a classroom projector without a cable when both support the same wireless method. On Windows that is Miracast: Microsoft says you can "wirelessly connect your PC to a TV, projector, or other kind of external display that supports Miracast" by pressing Windows key + K and selecting the display. On a Mac, Apple's wireless route is AirPlay.
If the projector does not support Miracast, Microsoft says you need "a Miracast adapter (sometimes called a dongle) that plugs into an HDMI port." Microsoft's checklist for a wireless display that will not connect also says to:
- Make sure Wi-Fi is turned on.
- Update the laptop's drivers and the display's or adapter's firmware.
- Restart the laptop and the wireless display, or remove the display and connect it again.
On a Mac, Apple's AirPlay guide says you can "mirror your Mac on an HDTV" from the screen mirroring menu in Control Center, and that "Both devices have Wi-Fi turned on and are connected to the same network." Ask whoever looks after the room which method its display accepts, and keep a cable as a fallback.
What should you do when the projector says "No signal" or the laptop does not detect it?
Work from the projector back to the laptop: confirm the projector's source matches the input you used, press Windows key + P and choose Duplicate, reseat the cable and any adapter at both ends, then restart the laptop with the cable still plugged in. Boston University's classroom guide gives the same last resort: "check the cable connections and restart your laptop."
If Windows does not list the projector at all, Microsoft's guide to multiple monitors says: "If you connected another display and it isn't showing in Settings, select Start > Settings > System > Display > Multiple displays > Detect."
| What you see | What to try |
|---|---|
| The projector is on and on the right input, but the image is black | Check the lens cap or shutter, and the blank or A/V mute button on the remote or room panel. |
| The projector shows your desktop but not your slides or video | You are in Extend: drag the window across, or switch to Duplicate. |
| The laptop screen goes dark but the projector works | Second screen only is selected: Windows key + P, then Duplicate. |
| The picture flickers or drops out | Reseat the cable; remove any dock or adapter you do not need; try another cable. |
| A USB-C adapter is plugged in but there is no picture | That port may not support DisplayPort Alt Mode: try the laptop's other USB-C port, or check its documentation. |
| No sound | HDMI: choose the projector or HDMI device under Output in Sound settings. VGA: connect an audio cable to the headphone jack. |
| The wireless projector is not in the Windows key + K list | Turn Wi-Fi on; check the display supports Miracast or has its adapter plugged in; restart both. |
If none of that works, Microsoft's troubleshooting page for external displays says to "Disconnect all accessories from your PC", because "Connected docks, dongles, adapters and other hardware can cause conflicts", and that "pressing Windows logo Key + Ctrl + Shift + B to reset your graphics driver may fix your issue." It also suggests trying another video port.
A video port that shows nothing with any cable, adapter or projector may point to a hardware fault rather than a setting. For a CZ-4, read what Citzen's CZ-4 warranty covers and what to prepare before a claim, and see Citzen's delivery, warranty and returns terms.
Where can teachers and schools get help from Citzen?
For a Citzen CZ-4, ask Citzen directly whether it needs an adapter for your classroom's HDMI or VGA input, and if so which one. Citzen's WhatsApp hotline is +60 12-565 2091, open Monday to Saturday from 9am to 1pm, and Citzen says messages sent after hours are answered as soon as possible. This guide does not describe the CZ-4's ports, video outputs or wireless features.
Message Citzen on WhatsApp a few days before the lesson, say whether the room uses HDMI or VGA, and ask about the CZ-4. Citzen says its hotline answers "specs, configurations, bulk-order, and education program questions". Citzen's contact details are on its About page.
- Before you buy: Citzen asks buyers to message first: "Please reach out on WhatsApp before purchase — we're happy to walk you through specs, configurations, and use-cases so you can buy with confidence." Citzen has no online checkout and operates a no-refund policy, so if projector connections matter to your teaching, ask then. Our guide to choosing a laptop for teaching in Malaysia covers what else to check.
- For educators and schools: Citzen offers government educators an interest-free instalment plan (eligibility applies; Citzen says "Talk to us for the details and eligibility"), and runs on-site school demo sessions by appointment "so teachers and students can try the CZ-4 in real classroom workflows." Details are in the educators and schools section of Citzen's About page, and our checklist for preparing a school laptop demo suggests what to try during one.
More practical guides for students, parents and teachers are on Citzen's Guides page.
Frequently asked questions
Why is my laptop not detecting the projector?
Check the cable first: reseat it and any adapter at both ends, and make sure the projector is on and set to the input you used. Then, on Windows, open Start, then Settings, then System, then Display, then Multiple displays, and select Detect, as Microsoft's guide to multiple monitors describes. If a USB-C adapter is involved, that port may not send video, so try another port.
Do I need an adapter to connect a laptop to a projector?
Only if the laptop's video output and the projector's input differ, for example a laptop with only USB-C ports and a projector with HDMI or VGA. A USB-C adapter works only from a port that supports DisplayPort Alt Mode, which VESA says is normally marked with the DP logo. Utah State University's classroom guide expects laptop owners to bring their own adapter.
Why is there no sound from the projector?
Over HDMI, the laptop may still be sending sound to its own speakers: on Windows or a Mac, choose the projector or HDMI device under Output in Sound settings. VGA carries no sound at all, so connect a separate audio cable from the laptop's headphone jack to the room's speakers, then raise the volume on both the laptop and the room system.
How do I hide my screen from the class without unplugging?
On Windows, press Windows key + P and choose PC screen only, which Microsoft describes as "See things on one display only." Switch back to Duplicate or Extend when you are ready. Many projector remotes and room control panels also have a blank or A/V mute button that hides the picture for a moment.
Does the Citzen CZ-4 need an adapter for a classroom projector?
Ask Citzen, because this guide does not describe the CZ-4's ports or video outputs. Message Citzen's WhatsApp hotline on +60 12-565 2091 (Monday to Saturday, 9am to 1pm), say whether your classroom projector uses HDMI or VGA, and ask whether the CZ-4 needs an adapter for it and, if so, which one. Ask a few days before the lesson.
